24V 35Ah Mobility Scooter Lithium Battery Kit has everything that you need to switch your portable electric mobility scooter over to lithium ion batteries. Two 12V 35Ah batteries are connected in series to create a powerful 24V 35Ah system. This weigh-saving configuration easily doubles the range that traditional lead acid or AGM batteries provide. Gain the peace of mind to cruise all day!This is an option for "MOST" applications that currently uses a lead acid, gel, or AGM style battery.
*All LITHIUM BATTERIES must be charged with a lithium charger.
Kit includes:

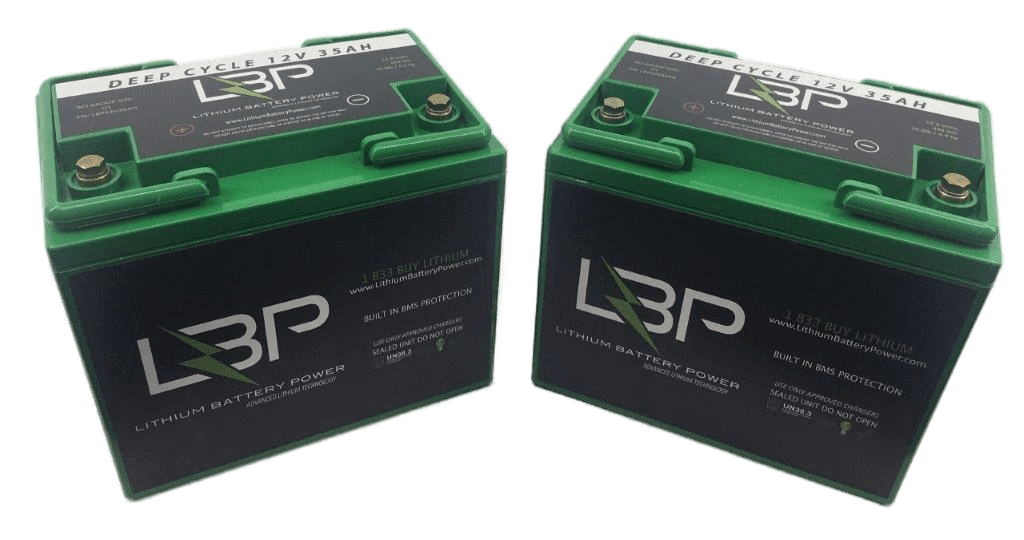

2 x 12v35Ah Lithium Ion Batteries (24 Volts total)
Lithium Battery Power 12V 35AH Lithium Ion Battery is a high-performing deep cycle battery built on patented Lithium Iron Phosphate (LiFePO₄) chemistry. The LBP12V35Ah features a built in automatic battery management system (BMS) that keeps the battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life. Designed as a "drop in replacement", this is a plug and play option for any application that currently uses a lead acid, gel, or AGM style battery.
Does not come with charger. Charger is sold separately.
Features
- >4000 Cycles at 80% depth of discharge
- Create systems 12-1000 Volts
- Series and/or Parallel operation
- Automatic system cell balancing
- IP56 water and dust resistant BCI Group U1 case
- Temperature monitoring
- Exceptional voltage stability
- Rugged mechanical design
- Maintenance free
- No hydrogen generation or gassing
- <70% the weight of similarly sized SLA batteries
- Stock available for quick delivery in US or worldwide
Benefits of Lithium Battery Power
- Save weight and space.
-
Increase your boat or vehicle's top speed.
-
Enjoy rapid charging and longer run time between charges.
-
Replace your batteries less frequently.
-
Enjoy peace of mind knowing that you have the safest and most dependable option on the market, built in the USA.
- 10 year warranty.
|
Specifications for Each Battery |
|
|
Model |
LBP35 |
|
Group Size |
U1 |
|
Nominal Voltage |
12.8V |
|
Charge Voltage |
14.4V to 14.6V |
|
Max Charge / Discharge Current |
35A (amps) |
|
Cold Cranking Amps |
350A (amps) |
|
Length |
6.88" |
|
Width |
4.09" |
|
Height |
6.49" |
|
Weight |
10.9 lbs |
|
Type |
LiFePO4 |
| Est. Shipping Size | 21x21x21" box |
|
Performance |
|
|
Usable Capacity (amp hours) |
35AH |
|
Depth of Discharge |
100% |
|
Peak amps 5 seconds |
350A |
|
Reserve Minutes @ 20A |
105 |
|
Reserve Minutes @ 35A |
60 |
|
Self Discharge |
<3% a year |
|
Capacity % @ 100 Cycles |
102% |
|
Capacity % @ 500 Cycles |
96.3% |
|
Capacity % @ 1000 Cycles |
90.8% |
|
Capacity % @ 1500 Cycles |
85.4% |
|
Capacity % @ 2000 Cycles |
80.1% |
|
Temperature Performance |
|
|
Fahrenheit |
Usable Capacity |
|
140 |
103% |
|
122 |
102% |
|
104 |
100% |
|
86 |
100% |
|
68 |
98% |
|
50 |
92% |
|
32 |
83% |
|
14 |
80% |
|
-4 |
70% |
|
-22 |
60% |
|
-40 |
10% |
|
-58 |
0% |
|
Automatic Battery Protection System |
|
|
Low Voltage Disconnect |
8V |
|
Over Voltage Disconnect |
15.8V |
|
Short Circuit Protection |
Instant |
|
Reverse Polarity Protection |
Instant |
|
Cell Balancing |
Automatic |
|
Cell Specifications |
|
|
Connection |
Welded |
|
Type |
Cylindrical |
|
Internal Impedance |
≤10mΩ |
