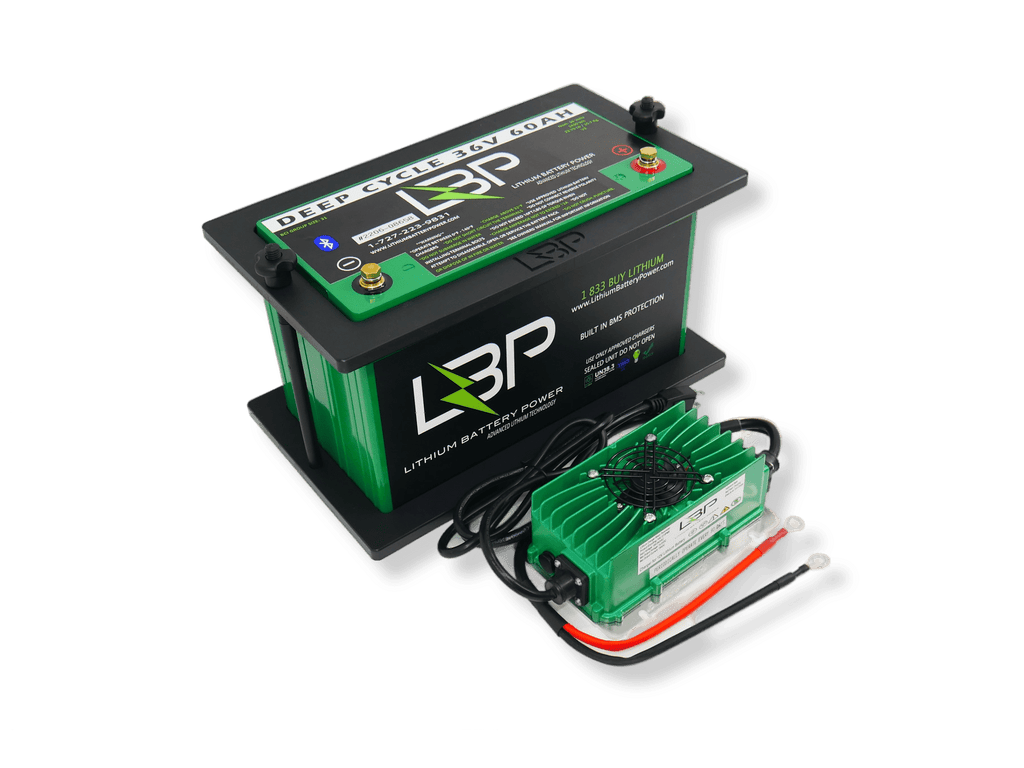

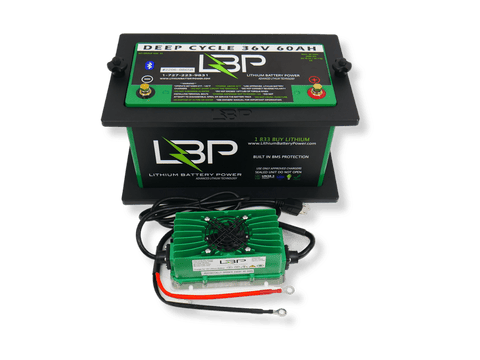

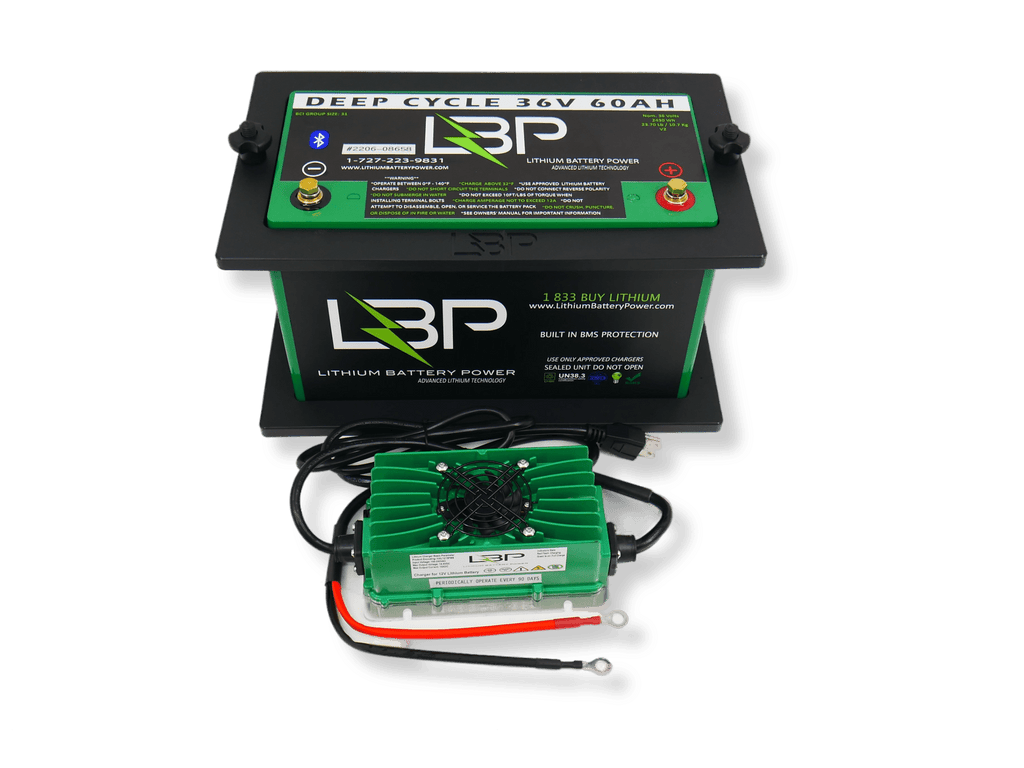

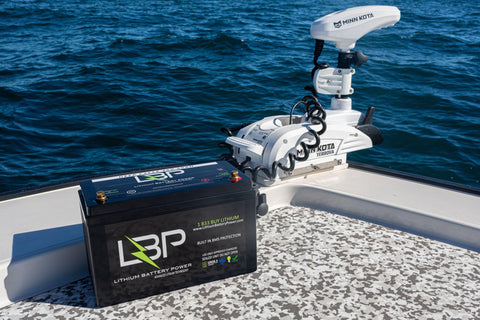

The LBP 36V 60Ah Trolling Motor Lithium Battery Kit includes everything that you need to upgrade any 36-volt trolling motor to lithium power. Gain the ability to troll all day and monitor your charge levels via the Victron iPhone app. This kit replaces 3 regular lead acid batteries with one lithium battery, freeing up lots of extra weight and space in the process. Compatible with all makes and models of marine trolling motors.

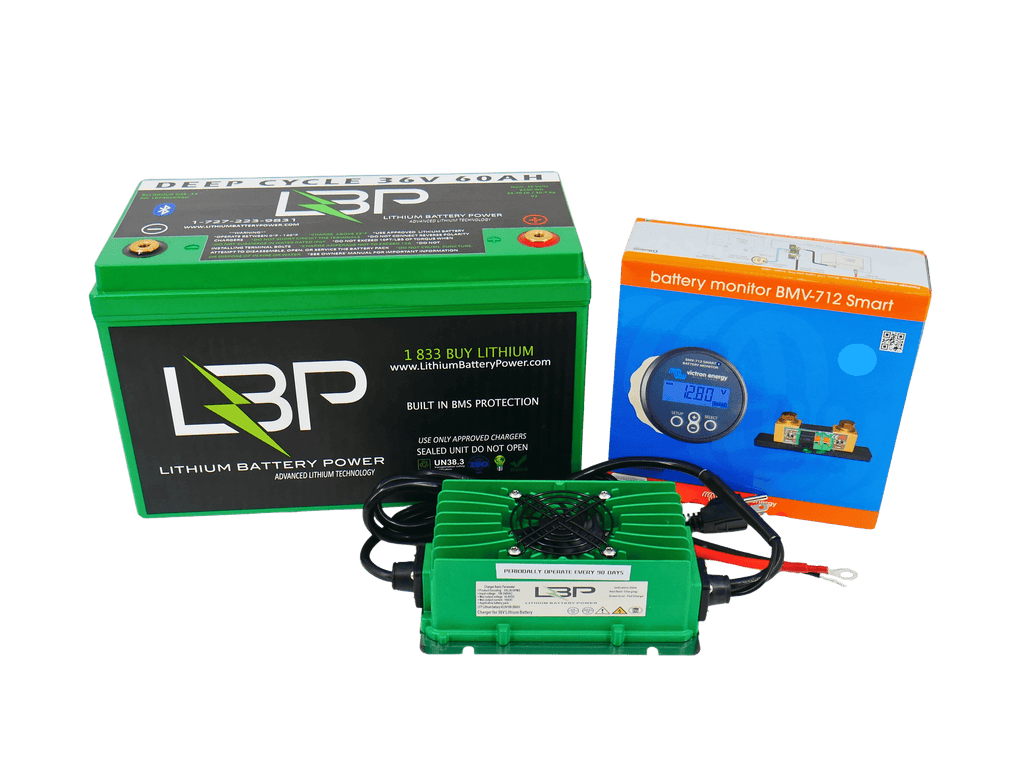

Package includes:
1 x LBP 36V 60Ah Lithium Battery
1 x 36v 10Ah Waterproof Charger
1 x Victron Smart Gauge (Bluetooth Battery Diagnostics)
• >4000 Cycles at 80% depth of discharge
• Series and/or Parallel operation
• Automatic cell balancing system
• IP56 Water and Dust resistant Group 31 case
• Temperature monitoring
• Exceptional voltage stability
• Rugged mechanical design
• Maintenance free
• No hydrogen generation or gas
• <70% the weight of similarly sized SLA batteries
• Stock available for quick delivery in US or worldwide
Tested and tried with these brands:
- 10 year warranty.
*DO NOT TORQUE POST MORE THAN 5LB(FT)/60LB(IN)*
Standard | |
Nominal Voltage | 40.7 |
Nominal Capacity @ 1C | 60Ah |
Charge Voltage | 46.2V - 46.6V |
Charge Current: Recommended | < 15A |
Discharge Voltage Minimum | 27.5V |
Discharge Current Max (Constant) | 60A |
Pulse Current | 75A |
Weight | 33.5lb/15.15kg |
BCI Group Number | Group 31 |
Terminals (TPI) | 3/8" x 1.25 |
Dimensions L x W x H (w/Terminals) | 13.25" x 6.7" x 8.5" |
Advanced | |
Operating Temperature | Charge: -10°C to 45°C Discharge: -20°C to 60°C |
Storage Temperature | -40°C to 50°C |
Optimal Humidity | 5% to 95% |
Water/Dust Resistance Rating (IP) | IP 56 |
Ingress Protection: Solids/Dust | 5 Rating: Protected against harmful deposits of dust |
Ingress Protection: Water/Moisture | 6 Rating: Protected against strong jets of water |
Certifications | UL1642, FFC Class B |
Shipping Classification | UN 3480, Class 9 |
