Victron Blue Tooth LED Gauge

Lithium Battery Power, LLC

Regular price $299.99 Sale

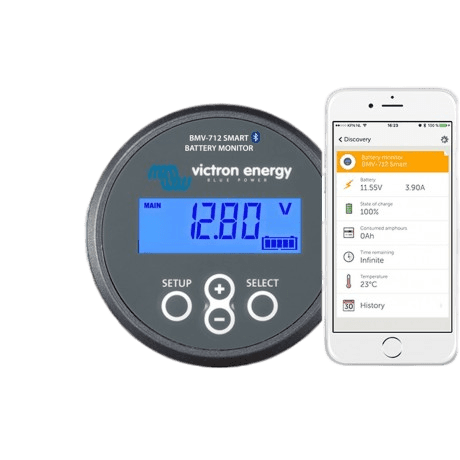

This is the latest version of the BMV Amp Hour Meter, which is now called the BMV712. It replaces the BMV702 that went before it by adding built in Bluetooth capabilities.  It keeps track of current flowing in and out of a battery bank and uses a sophisticated algorithm to read out the state of charge of the battery in Percentage Remaining and Amp Hours Remaining. It also displays Volts and Amps, time to go, and Consumed Energy and keeps track of Historic Data including Battery Efficiency, Average Discharge, Deepest Discharge, Number of Cycles, Overvoltage, and Undervoltage Alarms.



  • Victron Energy BMV 712 battery monitor
  • Monitors volts, amps, amp hours and time to go for a single battery bank.
  • Reads voltage (only) for a second bank, OR midpoint voltage
  • Can read temperature (with addition of optional temperature sensor)
  • Included shunt measures up to 500 Amps
  • For use with DC systems from 12 to 70 volts
  • Visual and audible alarms and programmable alarm
  • 10 meter cable, connectors and fuse included.
  • Special order cables come in 0.3m, 0.9m, 1.8m, 3m, and 5m
  • Removable bezel allows round or square face for display

  • The biggest advantage of the BMV 712 over the BMV 702 and separate Bluetooth Dongle is that by building in the Bluetooth component into the meter the VE Direct port is available for other uses (eg connecting to the Color Control GX)
    70 Volts is the maximum allowed voltage and not 95 Volts as listed in their literature.  Their literature will be corrected.
