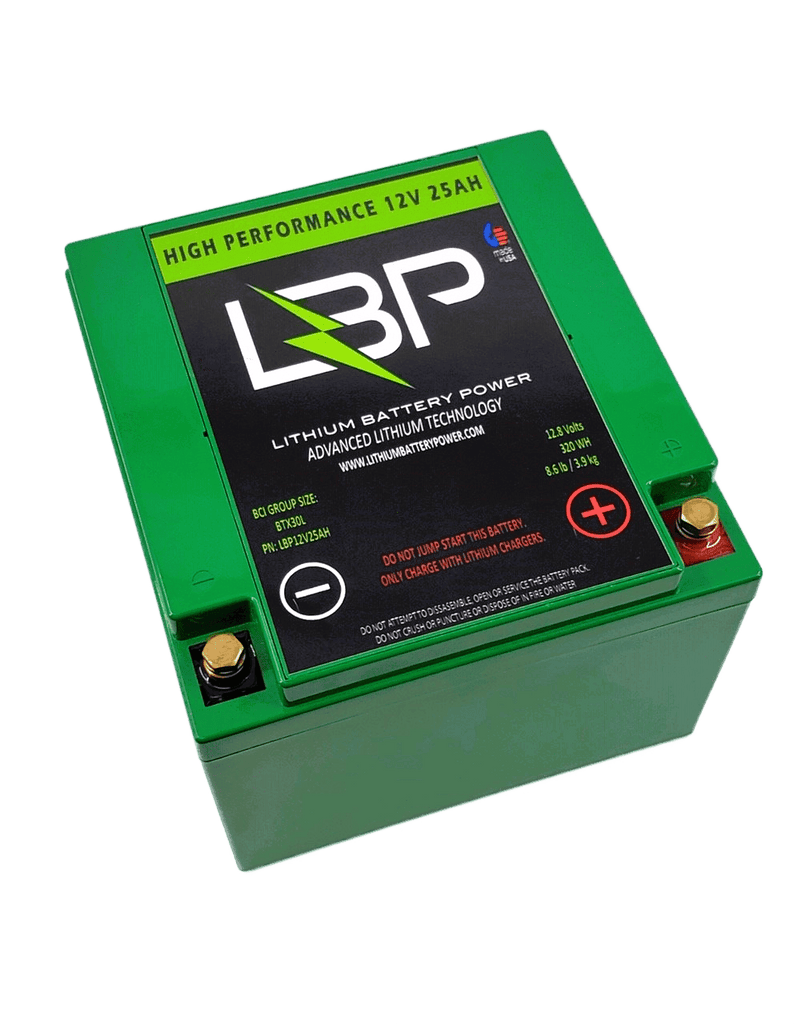

Lithium Battery Power 12V 25AH Lithium Ion Battery is a high-performing Harley Cranking battery built on patented Lithium Iron Phosphate (LiFePO₄) chemistry. The LBP12V25Ah features a built in automatic battery management system (BMS) that keeps the battery running at peak performance while preventing overheating, overcharging, and maximizing cell cycle life. This is a plug and play option for "MOST" applications that currently uses a lead acid, gel, or AGM style battery.
*All LITHIUM BATTERIES must be charged with a lithium charger.
*Note - This new 12V 25Ah Harley Cranking battery features a more advanced BMS for improved thermal management, upgraded lithium cells for a longer charge life, and a sleeker case.
- >4000 Cycles at 80% depth of discharge
- Series and/or Parallel operation
- Automatic cell balancing system
- IP56 Water and Dust resistant BCI Group BTX30L case
- Temperature monitoring
- Exceptional voltage stability
- Rugged mechanical design
- Maintenance free
- No hydrogen generation or gas
- <70% the weight of similarly sized SLA batteries
- Stock available for quick delivery in US or worldwide
*DO NOT TORQUE POST MORE THAN 5LB(FT)/60LB(IN)*
Standard | |
Nominal Voltage | 12.8V |
Nominal Capacity @ 1C | 25Ah |
Charge Voltage | 14.45V - 14.60V |
Charge Current: Recommended | < 35A |
Discharge Voltage Minimum | 10V |
Discharge Current Max (Constant) | 600A |
Pulse Current | 1000A |
Weight | 8.6lb/3.9kg |
BCI Group Number | BTX30L |
Terminals (TPI) | M6 |
Advanced | |
Operating Temperature | Charge: -10°C to 45°C Discharge: -20°C to 60°C |
Storage Temperature | -40°C to 50°C |
Optimal Humidity | 5% to 95% |
Water/Dust Resistance Rating (IP) | IP 56 |
Ingress Protection: Solids/Dust | 5 Rating: Protected against harmful deposits of dust |
Ingress Protection: Water/Moisture | 6 Rating: Protected against strong jets of water |
Certifications | UL1642, FFC Class B |
Shipping Classification | UN 3480, Class 9 |
